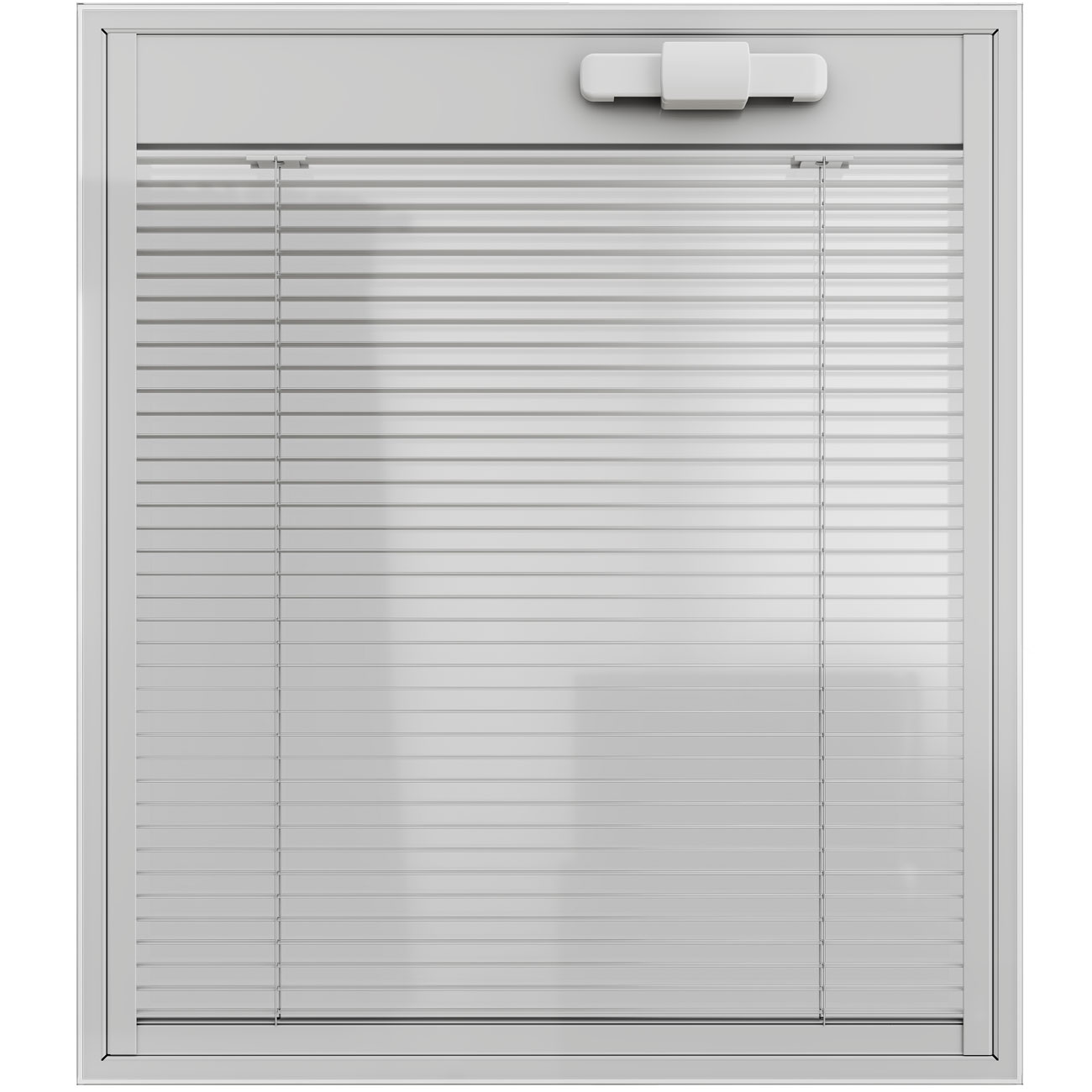

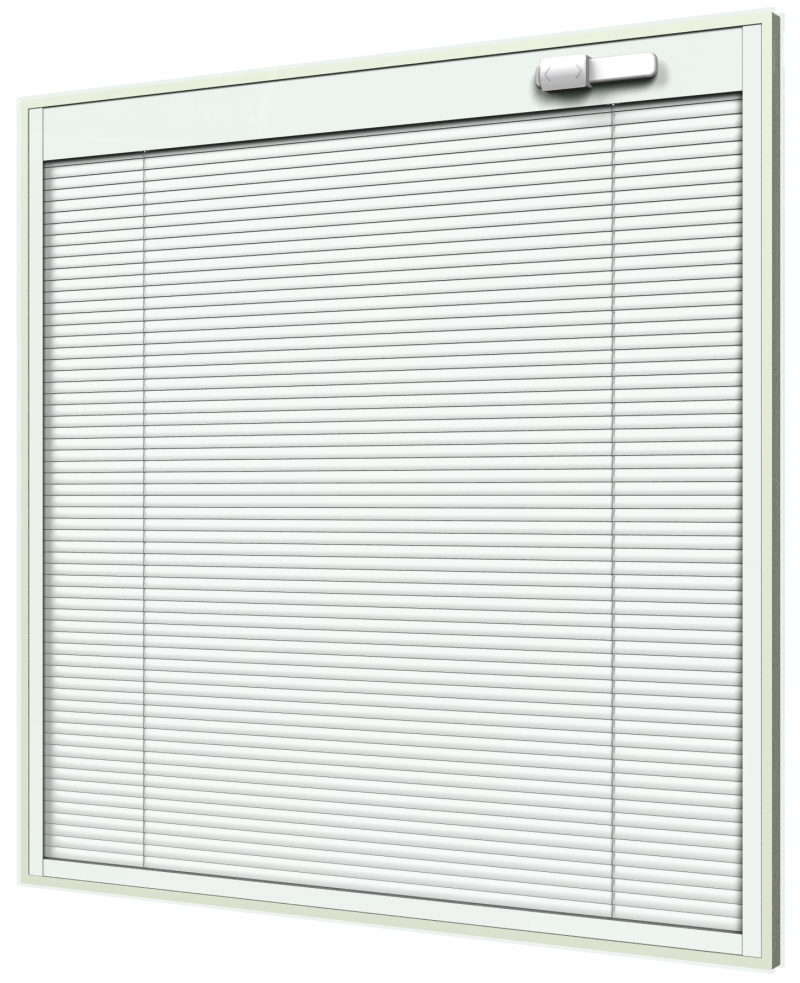

Tilt Blinds + Glass for Single- & Double-Hung Windows

Blind Options

• Custom sizes: 8"–54" wide x 12"–68" tall (in 1/16" increments)

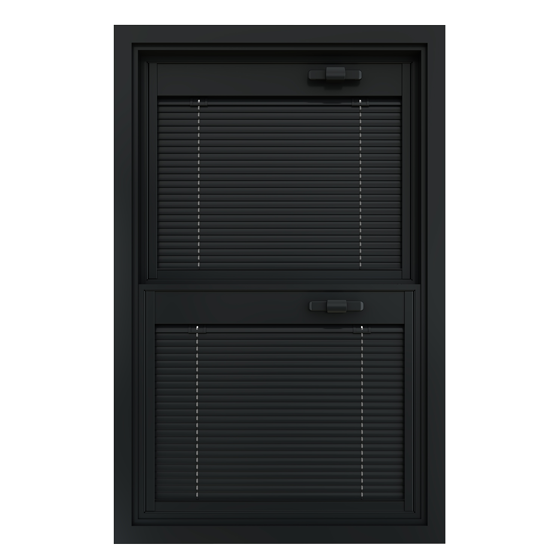

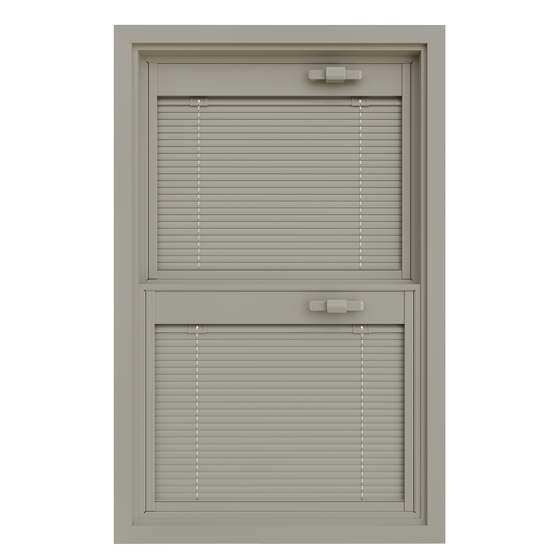

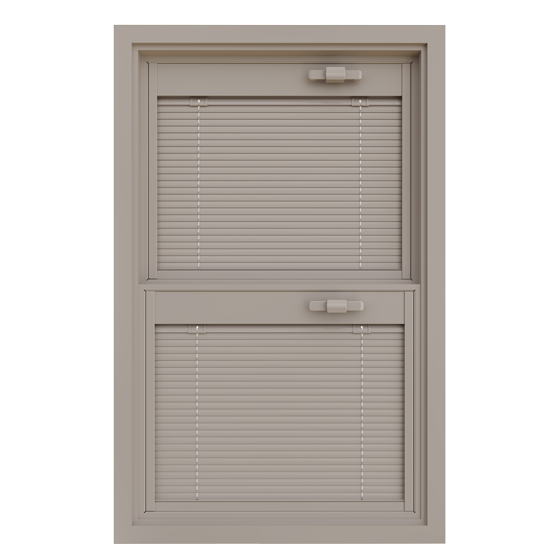

• 6 colors (white, tan, sand, silver moon, slate gray, espresso)
• Tempered or annealed glass
• Clear glass, 8 Low-E (single or dual) or 4 NEAT (single or dual) options

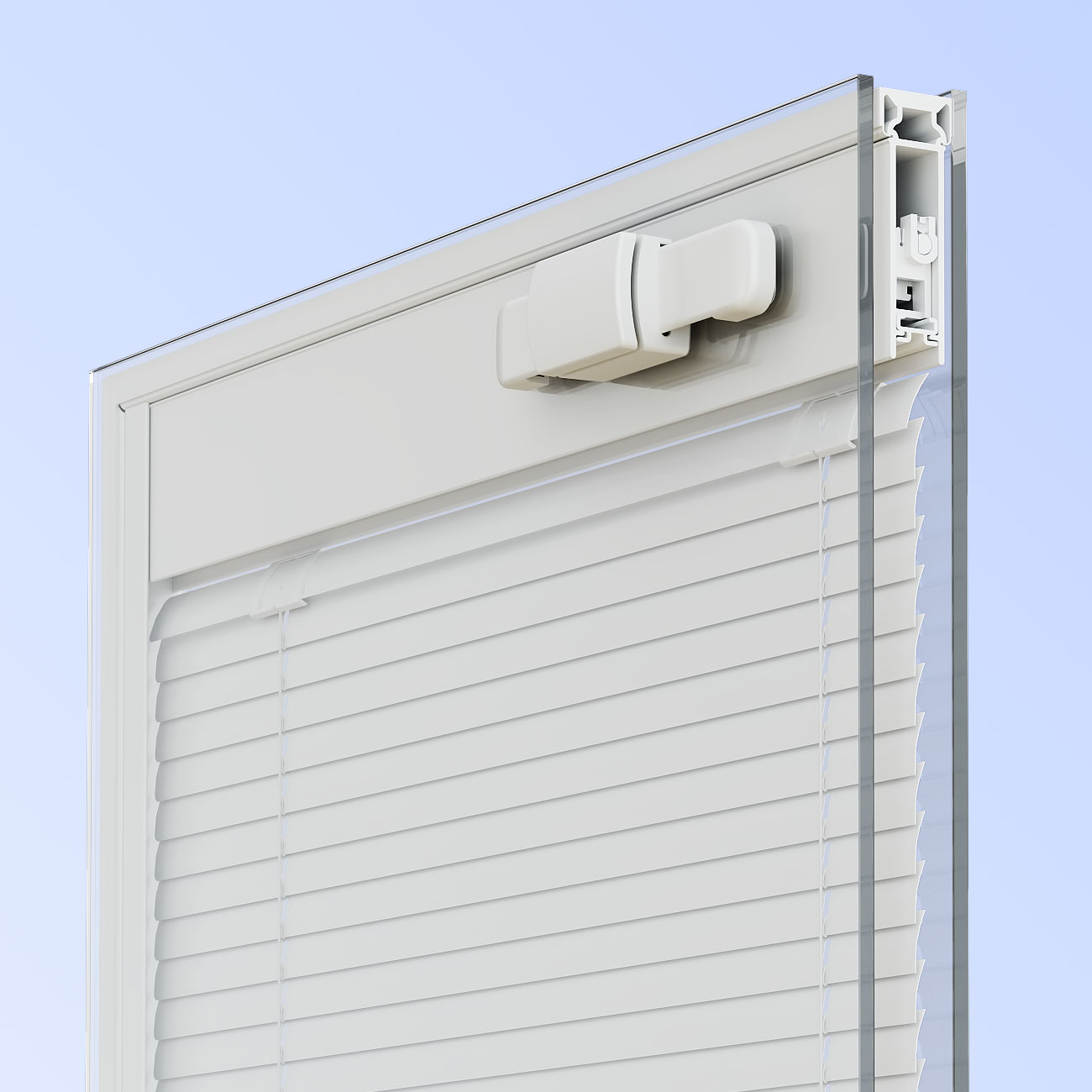

• Streamlined operator design (tilt function)
• Minimum order quantity = 1
• 10-year full warranty
• Child & pet-friendly: no exposed cords

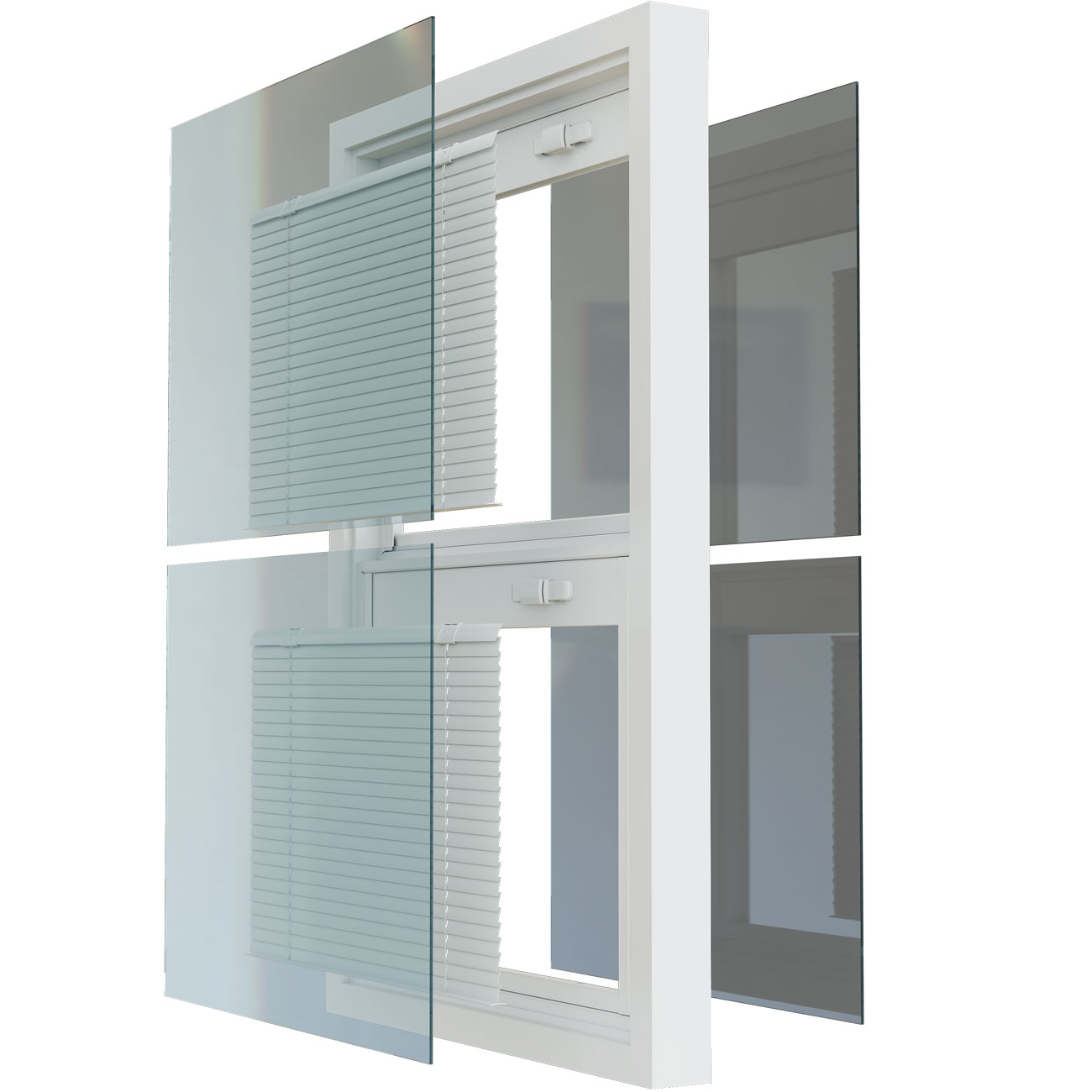

• No dusting, maintenance-free: blinds are enclosed between glass
• Assembled in the USA
• Patent pending US20180355661A1

Blind Options

• Custom sizes: 8"–54" wide x 12"–68" tall (in 1/16" increments)
• 6 colors (white, tan, sand, silver moon, slate gray, espresso)
• Tempered or annealed glass
• Clear glass, 8 Low-E (single or dual) or 4 NEAT (single or dual) options
• Streamlined operator design (tilt function)
• Minimum order quantity = 1
• 10-year full warranty
• Child & pet-friendly: no exposed cords
• No dusting, maintenance-free: blinds are enclosed between glass
• Assembled in the USA
• Patent pending US20180355661A1

Specifications

	BLINDS + GLASS TILT
IG panel sizes	8"–54" wide* 12"–68" tall* (* in 1/16" increments) 7/8" thick
Sq ft max	9 sq ft
Glass types	Tempered & Annealed: up to 9 sq ft (no more than 36" in one direction) (single operator)
Low-E options	Single: 270, 272, 340, 366 Dual: I89/270, I89/272, I89/340, I89/366
NEAT options	Single: 270, 366 Dual: I89/270, I89/366
Operator options	Operator position: upper-right hand corner of IG Streamlined design: 0.629" thick

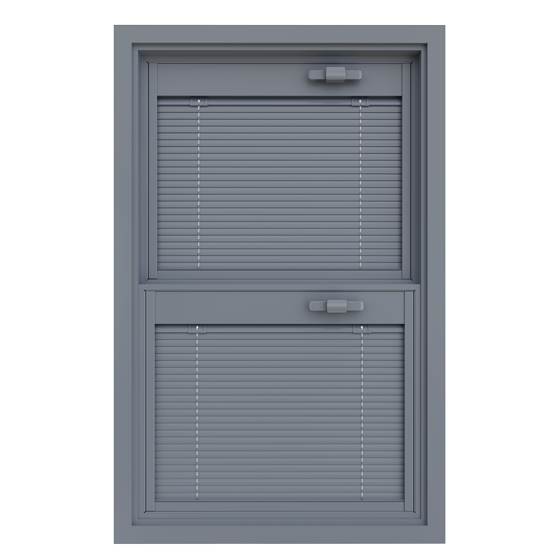

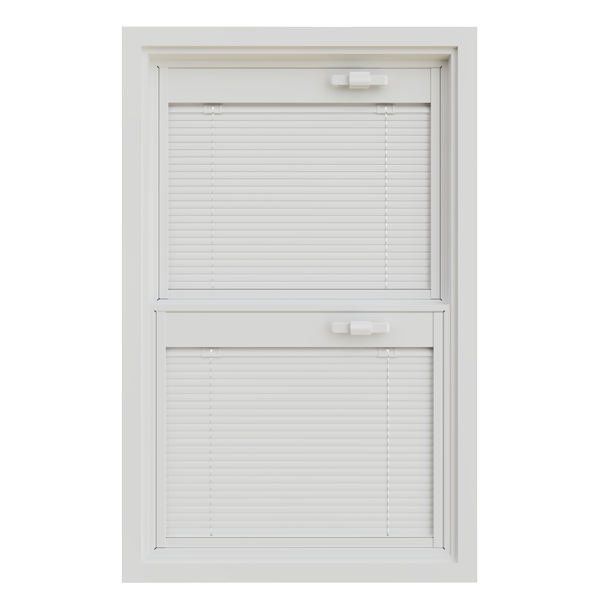

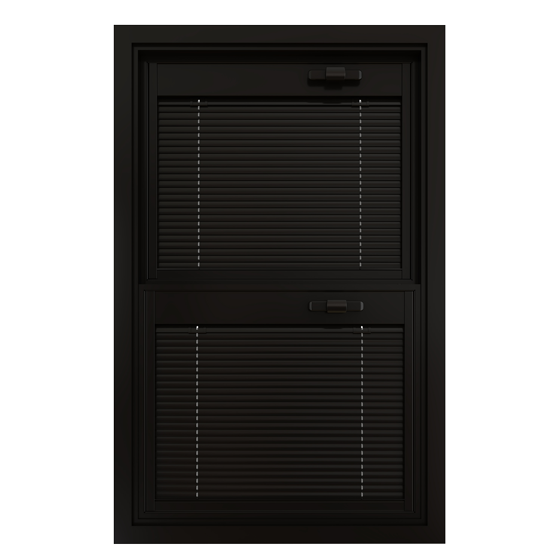

Colors (blinds & components are color coordinated)	White Sand Tan Silver moon Slate gray Espresso

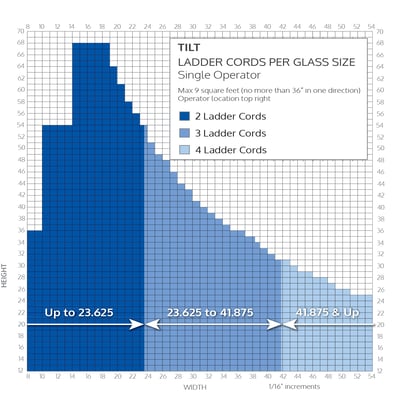

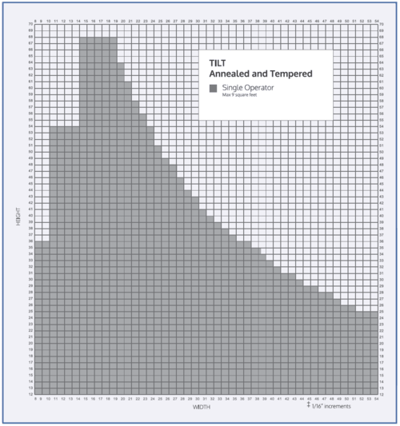

Size Charts	Tempered & annealed glass Ladder cords

Technical Information

Read more about:
Product Performance
Product Codes
Energy Efficiency & Thermal Performance
Safety Certifications
3-Part Specifications

Download design specifications:
ODL® Blinds + Glass Tilt
(1 MB) Adobe PDF

ORDERING & DELIVERY DETAILS FOR WINDOW MANUFACTURERS
